make_bc_wall.c File Reference

#include "utilf.h"
#include "stypes.h"
#include "markers.h"
#include "extra.h"
#include "extra1.h"
#include "make_bc.h"
#include "make_bc_periodic.h"
#include "inout.h"

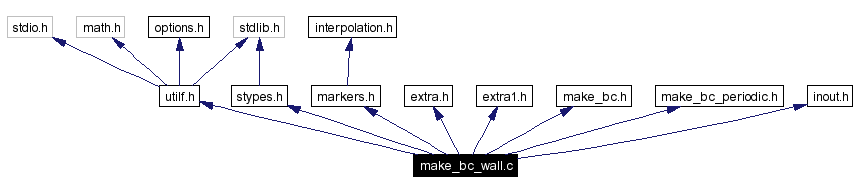

Include dependency graph for make_bc_wall.c:

Include dependency graph

Go to the source code of this file.

Defines

#define WALL_LEFT
#define WALL_TOP

Functions

void bc_vector_bound (real2D u, real2D v, int nx, int ny)
void bc_vector_div (real2D u, real2D v, real2D ap, interface in, int nx, int ny)
void bc_pressure_inside (real2D p, real2D ap, int nx, int ny)
void bc_pressure (real2D p, real2D ap, real pe, real R, int nx, int ny)
void bc_scalar (real2D scal, int nx, int ny, char sw)
int bc_xcoord (int i, int nx)
int bc_ycoord (int j, int ny)

Define Documentation

#define WALL_LEFT


Definition at line 20 of file make_bc_wall.c.

#define WALL_TOP


Definition at line 22 of file make_bc_wall.c.

Function Documentation

void bc_pressure (  real2D    p,
real2D    ap,
real    pe,
real    R,
int    nx,
int    ny
)


Definition at line 143 of file make_bc_wall.c.

References bc_pressure_inside(), real, and real2D.

Referenced by timestep().

00146 {
00147   int i, j;
00148
00149   bc_pressure_inside(p, ap, nx, ny);
00150   for (i = 2; i < nx; i++) {
00151 #ifdef WALL_TOP
00152     p[i][ny] = p[i][ny-1];
00153 #else
00154     p[i][ny] = rp_pressure(pe, R, (real)i + 0.5, (real)ny + 0.5, nx, ny);
00155 #endif
00156     p[i][1] = p[i][2]; /* axisymmetric */
00157   }
00158   for (j = 2; j < ny; j++) {
00159 #ifdef WALL_LEFT
00160     p[1][j] = p[2][j];
00161 #else
00162     p[1][j] = rp_pressure(pe, R, 1.5, (real)j + 0.5, nx, ny);
00163 #endif
00164 #ifdef WALL_RIGHT
00165     p[nx][j] = p[nx-1][j];
00166 #else
00167     p[nx][j] = rp_pressure(pe, R, (real)nx + 0.5, (real)j + 0.5, nx, ny);
00168 #endif
00169   }
00170 }

void bc_pressure_inside (  real2D    p,
real2D    ap,
int    nx,
int    ny
)


Definition at line 132 of file make_bc_wall.c.

References INP, and real2D.

Referenced by bc_pressure().

00133 {
00134   int i, j;
00135
00136   for (i = 2; i < nx; i++)
00137     for (j = 2; j < ny; j++)
00138       if (!INP(i,j))
00139         p[i][j] = 0.0;
00140 }

void bc_scalar (  real2D    scal,
int    nx,
int    ny,
char    sw
)


Definition at line 173 of file make_bc_wall.c.

References NUL, NULGRAD, NULGRAD2, and real2D.

Referenced by bc_pressure(), mgfas(), mginit(), mgsolve(), mgvcycle(), and pressure().

00174 {
00175   int i, j;
00176
00177   /*  div: gradient equal to zero on y=0,1 planes  */
00178   switch(sw) {
00179     case NULGRAD:
00180       for (i = 1; i <= nx; i++) {
00181         scal[i][1] = scal[i][2]; /* axisymmetric */
00182         scal[i][ny] = scal[i][ny - 1];
00183       }
00184       for (j = 1; j <= ny; j++) {
00185         scal[1][j] = scal[2][j];
00186         scal[nx][j] = scal[nx-1][j];
00187       }
00188       break;
00189     case NULGRAD2:
00190       for (i = 1; i <= nx; i++)
00191         scal[i][1] = scal[i][2]; /* axisymmetric */
00192 #ifdef WALL_LEFT
00193       for (j = 1; j <= ny; j++)
00194         scal[1][j] = scal[2][j];
00195 #endif
00196 #ifdef WALL_RIGHT
00197       for (j = 1; j <= ny; j++)
00198         scal[nx][j] = scal[nx-1][j];
00199 #endif
00200 #ifdef WALL_TOP
00201       for (i = 1; i <= nx; i++)
00202         scal[i][ny] = scal[i][ny-1];
00203 #endif
00204       break;
00205     case NUL:
00206       /*  residue equal to zero on the walls  */
00207       for (i = 1; i <= nx; i++) {
00208         scal[i][1] = 0.0; /* axisymmetric */
00209         scal[i][ny] = 0.0;
00210       }
00211       for (j = 1; j <= ny; j++)
00212         scal[1][j] = scal[nx][j] = 0.0;
00213       break;
00214     default:
00215       printf("illegal switch value for a scalar field\n");
00216       exit(1);
00217   }
00218 }

void bc_vector_bound (  real2D    u,
real2D    v,
int    nx,
int    ny
)


Definition at line 36 of file make_bc_wall.c.

References real2D.

Referenced by bc_vector(), bc_vector_div(), initialize(), and timestep().

00037 {
00038   int i, j;
00039   /* top and bottom walls */
00040   for (i = 1; i <= nx; i++) {
00041     u[i][1] = u[i][2]; /* axisymmetric */
00042     v[i][2] = 0.0;     /* axisymmetric */
00043     u[i][ny] = u[i][ny-1];
00044 #ifdef WALL_TOP
00045     v[i][ny] = 0.0;
00046 #else
00047     v[i][ny+1] = v[i][ny];
00048 #endif
00049   }
00050   /* left and right walls */
00051   for (j = 1; j <= ny; j++) {
00052 #ifdef WALL_LEFT
00053     u[2][j] = 0.0;
00054 #else
00055     u[1][j] = u[2][j];
00056 #endif
00057 #ifdef WALL_RIGHT
00058     u[nx][j] = 0.0;
00059 #else
00060     u[nx+1][j] = u[nx][j];
00061 #endif
00062     v[1][j] = v[2][j];
00063     v[nx][j] = v[nx-1][j];
00064   }
00065 }

void bc_vector_div (  real2D    u,
real2D    v,
real2D    ap,
interface    in,
int    nx,
int    ny
)


Definition at line 68 of file make_bc_wall.c.

References bc_vector_bound(), BU, BV, extra_velocity(), INU, INV, real, real2D, and UNDEFINED.

Referenced by timestep().

00071 {
00072   int i, j;
00073   real eu, ev;
00074
00075   /* extrapolate the interfacial cells */
00076   for (i = 3; i < nx; i++) {
00077     for (j = 2; j < ny; j++)
00078       if (!INU(i,j) && BU(i,j)) {
00079         /*
00080         if (INU(i+1,j) && INU(i-1,j)) {
00081           u[i][j] = (u[i+1][j] + u[i-1][j])/2.;
00082           printf("average u: %d,%d + %d,%d\n", i+1, j, i-1, j);
00083         }
00084         else if (INU(i,j+1) && INU(i,j-1)) {
00085           u[i][j] = (u[i][j+1] + u[i][j-1])/2.;
00086           printf("average u: %d,%d + %d,%d\n", i, j+1, i, j-1);
00087         }
00088         else {
00089         */
00090 #ifdef EXTRA_LINEAR
00091         extra_velocity((real)i, (real)j + 0.5, u, v, ap, in,
00092                        &eu, &ev, nx, ny);
00093 #else
00094         extra_velocity2((real)i, (real)j + 0.5, u, v, ap, in,
00095                         &eu, &ev, nx, ny);
00096 #endif
00097         u[i][j] = eu;
00098         /*      } */
00099       }
00100       else if (!INU(i,j))
00101         u[i][j] = UNDEFINED;
00102     for (j = 3; j < ny; j++)
00103       if (!INV(i,j) && BV(i,j)) {
00104         /*
00105         if (INV(i+1,j) && INV(i-1,j)) {
00106           v[i][j] = (v[i+1][j] + v[i-1][j])/2.;
00107           printf("average v: %d,%d + %d,%d\n", i+1, j, i-1, j);
00108         }
00109         else if (INV(i,j+1) && INV(i,j-1)) {
00110           v[i][j] = (v[i][j+1] + v[i][j-1])/2.;
00111           printf("average v: %d,%d + %d,%d\n", i, j+1, i, j-1);
00112         }
00113         else {
00114         */
00115 #ifdef EXTRA_LINEAR
00116           extra_velocity((real)i + 0.5, (real)j, u, v, ap, in,
00117                          &eu, &ev, nx, ny);
00118 #else
00119           extra_velocity2((real)i + 0.5, (real)j, u, v, ap, in,
00120                           &eu, &ev, nx, ny);
00121 #endif
00122           v[i][j] = ev;
00123           /*    } */
00124       }
00125       else if (!INV(i,j))
00126         v[i][j] = UNDEFINED;
00127   }
00128   bc_vector_bound(u, v, nx, ny);
00129 }

int bc_xcoord (  int    i,
int    nx
)


Definition at line 221 of file make_bc_wall.c.

00222 {
00223   /* mirror symmetric boundary conditions */
00224   if (i <= 1)
00225     return 3 - i;
00226   if (i >= nx)
00227     return 2*nx - i - 1;
00228   return i;
00229 }

int bc_ycoord (  int    j,
int    ny
)


Definition at line 232 of file make_bc_wall.c.

00233 {
00234   /* mirror symmetric boundary conditions */
00235   if (j <= 1)
00236     return 3 - j;
00237   if (j >= ny)
00238     return 2*ny - j - 1;
00239   return j;
00240 }
