make_bc.c File Reference

#include "utilf.h"
#include "stypes.h"
#include "markers.h"
#include "extra.h"
#include "extra1.h"
#include "make_bc.h"
#include "make_bc_periodic.h"
#include "inout.h"

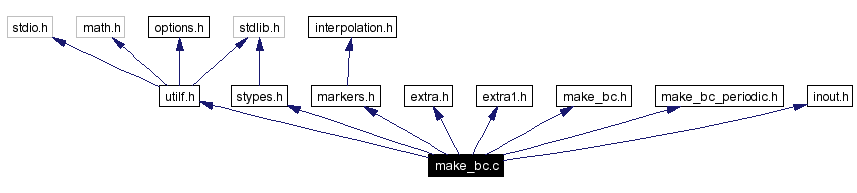

Include dependency graph for make_bc.c:

Include dependency graph

Go to the source code of this file.

Functions

void bc_vector_bound (real2D u, real2D v, int nx, int ny)
void bc_vector_div (real2D u, real2D v, real2D ap, interface in, int nx, int ny)
void bc_pressure_inside (real2D p, real2D ap, int nx, int ny)
void bc_pressure (real2D p, real2D ap, real pe, real R, int nx, int ny)
void bc_scalar (real2D scal, int nx, int ny, char sw)
int bc_xcoord (int i, int nx)
int bc_ycoord (int j, int ny)

Function Documentation

void bc_pressure (  real2D    p,
real2D    ap,
real    pe,
real    R,
int    nx,
int    ny
)


Definition at line 97 of file make_bc.c.

References bc_pressure_inside(), bc_scalar(), NULGRAD, real, and real2D.

00100 {
00101   bc_pressure_inside(p, ap, nx, ny);
00102   bc_scalar(p, nx, ny, NULGRAD);
00103 }

void bc_pressure_inside (  real2D    p,
real2D    ap,
int    nx,
int    ny
)


Definition at line 86 of file make_bc.c.

References INP, and real2D.

00087 {
00088   int i, j;
00089
00090   for (i = 2; i < nx; i++)
00091     for (j = 2; j < ny; j++)
00092       if (!INP(i,j))
00093         p[i][j] = 0.0;
00094 }

void bc_scalar (  real2D    scal,
int    nx,
int    ny,
char    sw
)


Definition at line 106 of file make_bc.c.

References NUL, NULGRAD, NULGRAD2, and real2D.

00107 {
00108   int i, j;
00109
00110   /*  div: gradient equal to zero on y=0,1 planes  */
00111   switch(sw) {
00112   case NULGRAD: case NULGRAD2:
00113     for (i = 1; i <= nx; i++) {
00114       scal[i][1] = scal[i][2]; /* axisymmetric */
00115       scal[i][ny] = scal[i][ny - 1];
00116     }
00117     for (j = 1; j <= ny; j++) {
00118       scal[1][j] = scal[2][j];
00119       scal[nx][j] = scal[nx-1][j];
00120     }
00121     break;
00122   case NUL:
00123     /*  residue equal to zero on the walls  */
00124     for (i = 1; i <= nx; i++) {
00125       scal[i][1] = 0.0; /* axisymmetric */
00126       scal[i][ny] = 0.0;
00127     }
00128     for (j = 1; j <= ny; j++)
00129       scal[1][j] = scal[nx][j] = 0.0;
00130     break;
00131   default:
00132     printf("illegal switch value for a scalar field\n");
00133     exit(1);
00134   }
00135 }

void bc_vector_bound (  real2D    u,
real2D    v,
int    nx,
int    ny
)


Definition at line 21 of file make_bc.c.

References real2D.

00022 {
00023   int i, j;
00024   /* top and bottom walls */
00025   for (i = 1; i <= nx; i++) {
00026     u[i][1] = u[i][2]; /* axisymmetric */
00027     v[i][2] = 0.0;     /* axisymmetric */
00028     u[i][ny] = u[i][ny-1];
00029     v[i][ny] = 0.0;
00030   }
00031   /* left and right walls */
00032   for (j = 1; j <= ny; j++) {
00033     u[2][j] = 0.0;
00034     v[1][j] = v[2][j];
00035     u[nx][j] = 0.0;
00036     v[nx][j] = v[nx-1][j];
00037   }
00038 #ifdef CENTRAL_SYMMETRY
00039   i = nx/2 + 1;
00040   for (j = 1; j <= ny; j++)
00041     u[i][j] = 0.0;
00042 #endif
00043 }

void bc_vector_div (  real2D    u,
real2D    v,
real2D    ap,
interface    in,
int    nx,
int    ny
)


Definition at line 46 of file make_bc.c.

References bc_vector_bound(), BU, BV, extra_velocity(), INU, INV, real, real2D, and UNDEFINED.

00049 {
00050   int i, j;
00051   real eu, ev;
00052
00053   /* extrapolate the interfacial cells */
00054   for (i = 3; i < nx - 1; i++) { /* don't solve the first and last columns */
00055     for (j = 2; j < ny; j++)
00056       if (!INU(i,j) && BU(i,j)) {
00057 #ifdef EXTRA_LINEAR
00058         extra_velocity((real)i, (real)j + 0.5, u, v, ap, in,
00059                        &eu, &ev, nx, ny);
00060 #else
00061         extra_velocity2((real)i, (real)j + 0.5, u, v, ap, in,
00062                         &eu, &ev, nx, ny);
00063 #endif
00064         u[i][j] = eu;
00065       }
00066       else if (!INU(i,j))
00067         u[i][j] = UNDEFINED;
00068     for (j = 3; j < ny; j++)
00069       if (!INV(i,j) && BV(i,j)) {
00070 #ifdef EXTRA_LINEAR
00071         extra_velocity((real)i + 0.5, (real)j, u, v, ap, in,
00072                        &eu, &ev, nx, ny);
00073 #else
00074         extra_velocity2((real)i + 0.5, (real)j, u, v, ap, in,
00075                         &eu, &ev, nx, ny);
00076 #endif
00077         v[i][j] = ev;
00078       }
00079       else if (!INV(i,j))
00080         v[i][j] = UNDEFINED;
00081   }
00082   bc_vector_bound(u, v, nx, ny);
00083 }

int bc_xcoord (  int    i,
int    nx
)


Definition at line 138 of file make_bc.c.

00139 {
00140   /* mirror symmetric boundary conditions */
00141   if (i <= 1)
00142     return 3 - i;
00143   if (i >= nx)
00144     return 2*nx - i - 1;
00145   return i;
00146 }

int bc_ycoord (  int    j,
int    ny
)


Definition at line 149 of file make_bc.c.

00150 {
00151   /* mirror symmetric boundary conditions */
00152   if (j <= 1)
00153     return 3 - j;
00154   if (j >= ny)
00155     return 2*ny - j - 1;
00156   return j;
00157 }
