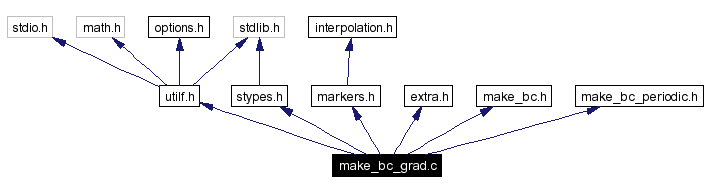

#include "utilf.h"#include "stypes.h"#include "markers.h"#include "extra.h"#include "make_bc.h"#include "make_bc_periodic.h"Include dependency graph for make_bc_grad.c:
Go to the source code of this file.
Functions | |
| void | bc_vector_bound (real2D u, real2D v, int nx, int ny) |
| void | bc_vector (real2D u, real2D a, real2D v, real2D c, interface in, int nx, int ny) |
| void | bc_vector_div (real2D u, real2D a, real2D v, real2D c, interface in, int nx, int ny) |
| void | bc_pressure (real2D p, real2D cc, interface in, real pe, real pg, real R, real Rp, int nx, int ny) |
| void | bc_tensor (real2D S11, real2D S22, real2D S12, int nx, int ny) |
| void | bc_scalar (real2D scal, int nx, int ny, char sw) |
| int | bc_xcoord (int i, int nx) |
| int | bc_ycoord (int j, int ny) |
|
||||||||||||||||||||||||||||||||||||||||
|
Definition at line 104 of file make_bc_grad.c. References bc_scalar(), NULGRAD, real, and real2D.
00107 {
00108 int i, j;
00109
00110 /* extrapolate the interfacial cells */
00111 for (i = 2; i < nx; i++) {
00112 for (j = 2; j < ny; j++) {
00113 if (cc[i][j] > 0.0 && cc[i][j] < 1.0)
00114 p[i][j] = interplate_p(p, cc, in,
00115 0.5 + (real)i, 0.5 + (real)j, nx, ny);
00116 if (cc[i][j] == 0.0)
00117 p[i][j] = 0.0;
00118 }
00119 }
00120
00121 for (i = 1; i <= nx; i++)
00122 p[i][ny - 1] = rp_pressure(pe, pg, R, Rp,
00123 0.5 + (real)i, 0.5 + (real)(ny - 1),
00124 0.5*(nx - 2.) + 2.);
00125 for (j = 1; j <= ny; j++) {
00126 p[2][j] = rp_pressure(pe, pg, R, Rp,
00127 2.5, 0.5 + (real)j,
00128 0.5*(nx - 2.) + 2.);
00129 p[nx - 1][j] = rp_pressure(pe, pg, R, Rp,
00130 0.5 + (real)(nx - 1), 0.5 + (real)j,
00131 0.5*(nx - 2.) + 2.);
00132 }
00133 bc_scalar(p, nx, ny, NULGRAD);
00134 }
|
|
||||||||||||||||||||
|
Definition at line 153 of file make_bc_grad.c. References NUL, NULGRAD, NULGRAD2, and real2D.
00154 {
00155 int i, j;
00156
00157 /* div: gradient equal to zero on y=0,1 planes */
00158 switch(sw) {
00159 case NULGRAD:
00160 for (i = 1; i <= nx; i++)
00161 {
00162 scal[i][1] = scal[i][2];
00163 scal[i][ny] = scal[i][ny - 1];
00164 }
00165 for (j = 1; j <= ny; j++) {
00166 scal[1][j] = scal[2][j];
00167 scal[nx][j] = scal[nx-1][j];
00168 }
00169 break;
00170 case NULGRAD2:
00171 for (i = 1; i <= nx; i++)
00172 scal[i][1] = scal[i][2];
00173 break;
00174 case NUL:
00175 /* residue equal to zero on the walls */
00176 for (i = 1; i <= nx; i++)
00177 scal[i][1] = scal[i][ny] = 0.0;
00178 for (j = 1; j <= ny; j++)
00179 scal[1][j] = scal[nx][j] = 0.0;
00180 break;
00181 default:
00182 printf("illegal switch value for a scalar field\n");
00183 exit(1);
00184 }
00185 }
|
|
||||||||||||||||||||||||
|
Definition at line 137 of file make_bc_grad.c. References real2D.
00138 {
00139 int i, j;
00140
00141 /* slip conditions on the walls S12 = 0 */
00142 for (i = 2; i <= nx - 1; i++) {
00143 S12[i][2] = 0.0;
00144 S12[i][ny] = S12[i][ny-1];
00145 }
00146 for (j = 2; j <= ny - 1; j++) {
00147 S12[2][j] = S12[3][j];
00148 S12[nx][j] = S12[nx-1][j];
00149 }
00150 }
|
|
||||||||||||||||||||||||||||||||
|
Definition at line 49 of file make_bc_grad.c. References bc_vector_bound(), INTERPLATE_FULL, real, and real2D.
00052 {
00053 int i, j;
00054
00055 /* extrapolate the interfacial cells */
00056 for (i = 2; i < nx; i++)
00057 for (j = 2; j < ny; j++) {
00058 if (a[i-1][j] > 0.0 && a[i-1][j] < 1.0)
00059 u[i][j] = interplate_u(u, a, NULL,
00060 (real)i, 0.5 + (real)j, nx, ny, INTERPLATE_FULL);
00061 if (i != 2 && a[i-1][j] == 0.0)
00062 u[i][j] = 0.0;
00063 if (c[i][j-1] > 0.0 && c[i][j-1] < 1.0)
00064 v[i][j] = interplate_v(v, c, NULL,
00065 0.5 + (real)i, (real)j, nx, ny, INTERPLATE_FULL);
00066 if (c[i][j-1] == 0.0)
00067 v[i][j] = 0.0;
00068 }
00069
00070 bc_vector_bound(u, v, nx, ny);
00071 }
|
|
||||||||||||||||||||
|
Definition at line 29 of file make_bc_grad.c. References real2D.
00030 {
00031 int i, j;
00032 /* top and bottom walls */
00033 for (i = 1; i <= nx; i++) {
00034 u[i][1] = u[i][2];
00035 v[i][2] = 0.0;
00036 u[i][ny] = 2.*u[i][ny-1] - u[i][ny-2];
00037 v[i][ny] = 2.*v[i][ny-1] - v[i][ny-2];
00038 }
00039 /* left and right walls */
00040 for (j = 1; j <= ny; j++) {
00041 u[1][j] = 2.*u[2][j] - u[3][j];
00042 u[nx][j] = 2.*u[nx-1][j] - u[nx-2][j];
00043 v[1][j] = 2.*v[2][j] - v[3][j];
00044 v[nx][j] = 2.*v[nx-1][j] - v[nx-2][j];
00045 }
00046 }
|
|
||||||||||||||||||||||||||||||||
|
Definition at line 74 of file make_bc_grad.c. References bc_vector_bound(), extra_velocity(), real, and real2D.
00077 {
00078 int i, j;
00079 real eu, ev, a11, a22, a12, a21;
00080
00081 /* extrapolate the interfacial cells */
00082 for (i = 2; i < nx; i++)
00083 for (j = 2; j < ny; j++) {
00084 if (a[i-1][j] > 0.0 && a[i-1][j] < 1.0) {
00085 extra_velocity((real)i, 0.5 + (real)j, u, a, v, c, in,
00086 &eu, &ev, &a11, &a22, &a12, &a21, nx, ny);
00087 u[i][j] = eu;
00088 }
00089 if (i != 2 && a[i-1][j] == 0.0)
00090 u[i][j] = 0.0;
00091 if (c[i][j-1] > 0.0 && c[i][j-1] < 1.0) {
00092 extra_velocity(0.5+(real)i, (real)j, u, a, v, c, in,
00093 &eu, &ev, &a11, &a22, &a12, &a21, nx, ny);
00094 v[i][j] = ev;
00095 }
00096 if (c[i][j-1] == 0.0)
00097 v[i][j] = 0.0;
00098 }
00099
00100 bc_vector_bound(u, v, nx, ny);
00101 }
|
|
||||||||||||
|
Definition at line 188 of file make_bc_grad.c.
00189 {
00190 /* mirror symmetric boundary conditions */
00191 if (i <= 1)
00192 return 3 - i;
00193 if (i >= nx)
00194 return 2*nx - i - 1;
00195 return i;
00196 }
|
|
||||||||||||
|
Definition at line 199 of file make_bc_grad.c.
00200 {
00201 /* mirror symmetric boundary conditions */
00202 if (j <= 1)
00203 return 3 - j;
00204 if (j >= ny)
00205 return 2*ny - j - 1;
00206 return j;
00207 }
|
