make_bc_rad.c File Reference

#include "utilf.h"
#include "stypes.h"
#include "markers.h"
#include "extra.h"
#include "make_bc.h"
#include "make_bc_periodic.h"

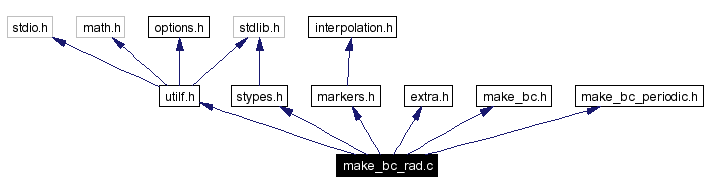

Include dependency graph for make_bc_rad.c:

Go to the source code of this file.

Functions
void	bc_vector_bound (real2D u, real2D v, real R, real Rp, real xc, int nx, int ny)
void	bc_vector (real2D u, real2D a, real2D v, real2D c, interface in, real R, real Rp, int nx, int ny)
void	bc_vector_div (real2D u, real2D a, real2D v, real2D c, interface in, real R, real Rp, int nx, int ny)
void	bc_pressure (real2D p, real2D cc, interface in, real pe, real pg, real pR, real R, real Rp, int nx, int ny)
void	bc_tensor (real2D S11, real2D S22, real2D S12, int nx, int ny)
void	bc_scalar (real2D scal, int nx, int ny, char sw)
int	bc_xcoord (int i, int nx)
int	bc_ycoord (int j, int ny)

---

Function Documentation

void bc_pressure (  real2D    p, real2D    cc, interface    in, real    pe, real    pg, real    pR, real    R, real    Rp, int    nx, int    ny )

Definition at line 119 of file make_bc_rad.c. References bc_scalar(), NULGRAD, real, and real2D. { int i, j; /* extrapolate the interfacial cells */ for (i = 2; i < nx; i++) { for (j = 2; j < ny; j++) { if (cc[i][j] > 0.0 && cc[i][j] < 1.0) p[i][j] = interplate_p(p, cc, in, 0.5 + (real)i, 0.5 + (real)j, nx, ny); if (cc[i][j] == 0.0) p[i][j] = pg; } } for (i = 1; i <= nx; i++) p[i][ny - 1] = rp_pressure(pe, pR, R, Rp, 0.5 + (real)i, 0.5 + (real)(ny - 1), 0.5*(nx - 2.) + 2.); for (j = 1; j <= ny; j++) { p[2][j] = rp_pressure(pe, pR, R, Rp, 2.5, 0.5 + (real)j, 0.5*(nx - 2.) + 2.); p[nx - 1][j] = rp_pressure(pe, pR, R, Rp, 0.5 + (real)(nx - 1), 0.5 + (real)j, 0.5*(nx - 2.) + 2.); } bc_scalar(p, nx, ny, NULGRAD); }

void bc_scalar (  real2D    scal, int    nx, int    ny, char    sw )

Definition at line 168 of file make_bc_rad.c. References NUL, NULGRAD, NULGRAD2, and real2D. { int i, j; /* div: gradient equal to zero on y=0,1 planes */ switch(sw) { case NULGRAD: for (i = 1; i <= nx; i++) { scal[i][1] = scal[i][2]; scal[i][ny] = scal[i][ny - 1]; } for (j = 1; j <= ny; j++) { scal[1][j] = scal[2][j]; scal[nx][j] = scal[nx-1][j]; } break; case NULGRAD2: for (i = 1; i <= nx; i++) scal[i][1] = scal[i][2]; break; case NUL: /* residue equal to zero on the walls */ for (i = 1; i <= nx; i++) scal[i][1] = scal[i][ny] = 0.0; for (j = 1; j <= ny; j++) scal[1][j] = scal[nx][j] = 0.0; break; default: printf("illegal switch value for a scalar field\n"); exit(1); } }

void bc_tensor (  real2D    S11, real2D    S22, real2D    S12, int    nx, int    ny )

Definition at line 152 of file make_bc_rad.c. References real2D. { int i, j; /* slip conditions on the walls S12 = 0 */ for (i = 2; i <= nx - 1; i++) { S12[i][2] = 0.0; S12[i][ny] = S12[i][ny-1]; } for (j = 2; j <= ny - 1; j++) { S12[2][j] = S12[3][j]; S12[nx][j] = S12[nx-1][j]; } }

void bc_vector (  real2D    u, real2D    a, real2D    v, real2D    c, interface    in, real    R, real    Rp, int    nx, int    ny )

Definition at line 62 of file make_bc_rad.c. References bc_vector_bound(), INTERPLATE_FULL, real, and real2D. { int i, j; /* extrapolate the interfacial cells */ for (i = 2; i < nx; i++) for (j = 2; j < ny; j++) { if (a[i-1][j] > 0.0 && a[i-1][j] < 1.0) u[i][j] = interplate_u(u, a, NULL, (real)i, 0.5 + (real)j, nx, ny, INTERPLATE_FULL); if (i != 2 && a[i-1][j] == 0.0) u[i][j] = 0.0; if (c[i][j-1] > 0.0 && c[i][j-1] < 1.0) v[i][j] = interplate_v(v, c, NULL, 0.5 + (real)i, (real)j, nx, ny, INTERPLATE_FULL); if (c[i][j-1] == 0.0) v[i][j] = 0.0; } bc_vector_bound(u, v, R, Rp, 0.5*(nx - 2.) + 2., nx, ny); }

void bc_vector_bound (  real2D    u, real2D    v, real    R, real    Rp, real    xc, int    nx, int    ny )

Definition at line 31 of file make_bc_rad.c. References cube, real, real2D, and sq. { int i, j; real r; R *= R; /* top and bottom walls */ for (i = 1; i <= nx; i++) { u[i][1] = u[i][2]; v[i][2] = 0.0; r = sqrt(sq((real)i - xc) + sq((real)ny + 0.5 - 2.)); u[i][ny] = R/cube(r)*Rp*((real)i - xc); r = sqrt(sq((real)i + 0.5 - xc) + sq((real)ny - 2.)); v[i][ny] = R/cube(r)*Rp*((real)ny - 2.); } /* left and right walls */ for (j = 1; j <= ny; j++) { r = sqrt(sq(2. - xc) + sq((real)j + 0.5 - 2.)); u[2][j] = R/cube(r)*Rp*(2. - xc); r = sqrt(sq((real)nx - xc) + sq((real)j + 0.5 - 2.)); u[nx][j] = R/cube(r)*Rp*((real)nx - xc); r = sqrt(sq(1.5 - xc) + sq((real)j - 2.)); v[1][j] = R/cube(r)*Rp*((real)j - 2.); r = sqrt(sq((real)nx + 0.5 - xc) + sq((real)j - 2.)); v[nx][j] = R/cube(r)*Rp*((real)j - 2.); } }

void bc_vector_div (  real2D    u, real2D    a, real2D    v, real2D    c, interface    in, real    R, real    Rp, int    nx, int    ny )

Definition at line 88 of file make_bc_rad.c. References bc_vector_bound(), extra_velocity(), real, and real2D. { int i, j; real eu, ev, a11, a22, a12, a21; /* extrapolate the interfacial cells */ for (i = 2; i < nx; i++) for (j = 2; j < ny; j++) { if (a[i-1][j] > 0.0 && a[i-1][j] < 1.0) { extra_velocity((real)i, 0.5 + (real)j, u, a, v, c, in, &eu, &ev, &a11, &a22, &a12, &a21, nx, ny); u[i][j] = eu; } if (i != 2 && a[i-1][j] == 0.0) u[i][j] = 0.0; if (c[i][j-1] > 0.0 && c[i][j-1] < 1.0) { extra_velocity(0.5+(real)i, (real)j, u, a, v, c, in, &eu, &ev, &a11, &a22, &a12, &a21, nx, ny); v[i][j] = ev; } if (c[i][j-1] == 0.0) v[i][j] = 0.0; } bc_vector_bound(u, v, R, Rp, 0.5*(nx - 2.) + 2., nx, ny); }

int bc_xcoord (  int    i, int    nx )

Definition at line 203 of file make_bc_rad.c. { /* mirror symmetric boundary conditions */ if (i <= 1) return 3 - i; if (i >= nx) return 2*nx - i - 1; return i; }

int bc_ycoord (  int    j, int    ny )

Definition at line 214 of file make_bc_rad.c. { /* mirror symmetric boundary conditions */ if (j <= 1) return 3 - j; if (j >= ny) return 2*ny - j - 1; return j; }

---
